JACK PANELS
MT48/MT52 PATCHBAY SERIES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
MT48/MT52 PATCHBAY SERIES

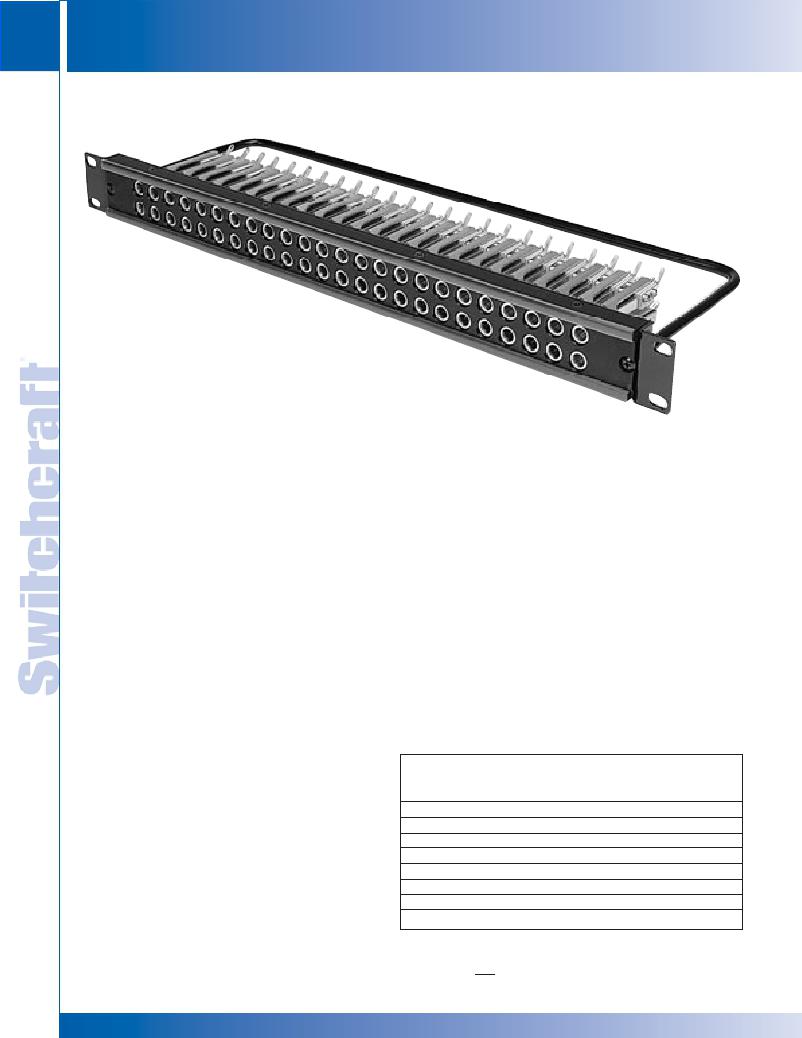

MT48FN
The MT48/52 Series patchbays offer a rugged cable tie bar
to support rear cabling. Also available is the normals strapped
configuration which has the shunts or normals tied together, top
to bottom jacks.
FEATURES AND BENEFITS
? Units feature either 48 or 52
MT Jax?
? Steel frame jacks for superior jack life
? Attractive, corrosion resistant nickel-plated jacks
? Gold switching contacts for long-term reliability in normal-
through connections
? Offset ground terminal for ease in making common ground
buss connections
? Fanned solder terminals for
easier solder connections
? Cable tie bar takes the weight
of cables off the jacks
? Four jack configurations
available for the exact switching arrangement: full normal,
half normal, non-normal, and normals strapped
SPECIFICATIONS
MATERIALS
JACKS
Frame: Steel, nickel-plated
Bushing: Brass, nickel-plated
Springs: Nickel silver, solder lugs
Kwik-change? Designation Strip: Extruded aluminum, black
anodized
Marking Strip:
White plastic, matte finish
Marking Strip Cover:
Clear, extruded plastic
MECHANICAL
Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Operating: 0?C to +50?C
ELECTRICAL
Contact Resistance: 30 milliohms maximum initial
Insulation Resistance: 10,000 megohms maximum
Dielectric Withstanding Voltage: 500VAC at 60 Hz
Working Voltage: 140VDC
maximum
Current Rating: 100 milliamps
Ordering Information
Ground Terminal: Nickel silver,
solder lugs
Switching Contacts: Welded, gold alloy
Insulation: Phenolic spacers, rigid PVC tubing through stack
Screws: Steel, nickel-plated
PANEL
Jack Panel : Thermoplastic
Cable Support Bracket: 5/16”
diameter black epoxy painted steel rod
Screws (designation strip): Steel, black zinc-plated
Screws (mounting jack): Steel, nickel plated
Part
Number
MT48FN
MT48HN
MT48NN
MT48NS
MT52FN
MT52HN
MT52NN
MT52NS
Type of
Jack
MT
MT
MT
MT
MT
MT
MT
MT
No. of
Jacks
48
48
48
48
52
52
52
52
Description
Full normals
Half normals
No normals
Normals strapped
Full normals
Half normals
No normals
Normals strapped
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
